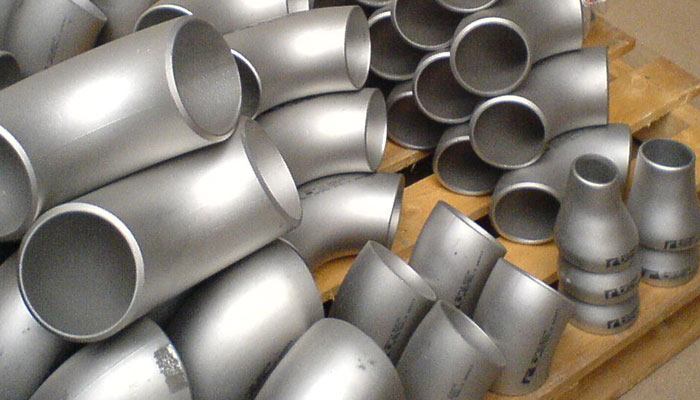

Fit-Wel Industries LLP. is an ISO certified company that is a manufacturer, exporter and stockist of Hastelloy Buttweld Fittings. These fittings are offered in customisable sizes as per the client requirements. ASME SB366 Hastelloy UNS N06022 Pipe Elbow helps with giving less frictional resistance to the fluids compared to other fittings. One of its great features is excellent weldability and resistance to crevice corrosion. ASTM B336 Hastelloy UNS N10276 Seamless Fittings are fittings that give good resistance to reducing and oxidising aqueous media. ASME SB 336 Hastelloy B2 Reducer are less susceptible to stress and crevice corrosion. It can be used in the welded condition. ASTM B 564 Hastelloy X Welded Fittings is used in aircrafts, furnaces and chemical processes. ASTM B 564 Hastelloy C276 Pipe Fittings is resistant to the formation of grain boundary precipitates in the weld heat-affected zone. ASTM B 336 Hastelloy C4 Tee are in a T shape. It exhibits good formability, weldability and machinability.
Fit-Wel Industries LLP. takes pride in offering the above mentioned varied range of products under the Hastelloy Buttweld Fittings product type. Also We offer wide range of Hastelloy ASTM B366 C276 Pipe Fittings such as Hastelloy C22 Tee, Hastelloy Alloy C4 End Pipe Cap, Hastelloy C2000 reducer, Hastelloy X cross, Hastelloy C22 elbow, Hastelloy C276 stub ends etc.
Specifications : ASTM B366 / ASME SB366
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : Seamless Butt Weld Fittings: 1/2" - 10", Welded Butt Weld Fittings: 1/2" - 48"
Type : Seamless / Welded / Fabricated
Schedule : Sch 5 TO Sch XXS.
Thickness : 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.
Grades : Hastelloy C276, C22, C4, C2000, B2, B3, X Pipe Fittings
Seamless/ Welded 100% Radiography Tested
| Products | Size | |
| ASTM B366 Hastelloy Elbow – Long Radius | ASTM B366 Hastelloy Stub Ends | Sizes 1/2″ – 24″ |
| ASTM B366 Hastelloy Elbow – Short Radius | ASTM B366 Hastelloy Cross | |
| ASTM B366 Hastelloy Reducing Elbow | ASTM B366 Hastelloy Reducing Cross | |
| ASTM B366 Hastelloy 45° Elbow | ASTM B366 Hastelloy Tees | |
| ASTM B366 Hastelloy Fabricated Tee | ASTM B366 Hastelloy End Cap | |
| ASTM B366 Hastelloy Reducer | ASTM B366 Hastelloy Seamless Fittings | |
| ASTM B366 Hastelloy Concentric Reducer | ASTM B366 Hastelloy Pipe Nipple | |
| ASTM B366 Hastelloy Eccentric Reducer | ASTM B366 Hastelloy 5D Elbow | |
| ASTM B366 Hastelloy 3D Elbow | ASTM B366 Hastelloy Welded Pipe Fittings | |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C276 | 2.4819 | N10276 | NW 0276 | ХН65МВУ | NiMo16Cr15W | ЭП760 |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | - | NiCr21Mo14W | - |
| Hastelloy B2 | 2.4617 | N10665 | - | - | - | - |
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| B2 | 0.02 max | 1.0 max | 0.1 max | 0.03 max | 1.0 max | Bal | 1.0 max | 2.0 max | 26 – 30 | 0.04 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| Hastelloy B2 | 9.2 g/cm3 | 1370 °C (2500 ºF ) | Psi – 1,10,000 , MPa – 760 | Psi – 51000 , MPa – 350 | 40 % |
| Hastelloy C276 Pipe Fittings | Hastelloy C22 Buttweld Pipe Fittings |
| Hastelloy C22 Seamless Pipe Fittings | Hastelloy B2 Welded Pipe Fittings |
| Hastelloy B366 C22 Pipe Elbow | Hastelloy Alloy C276 Buttweld Tee |
| Hastelloy C4 Buttweld Reducer Suppliers | ANSI C2000 Hastelloy Pipe Fittings |
| Hastelloy UNS N10276 Stubends Dealer | ASTM B366 Hastelloy Pipe Fittings Exporter |
| Hastelloy Alloy Butt weld Fittings Stockholder | Hastelloy UNS N06022 Pipe End Cap Distributors |
| Hastelloy UNS N10665 45deg.Elbow | B366 Hastelloy C276 90deg. LR Elbow Manufacturer |
| Hastelloy DIN 2.4819 Pipe Tee | Hastelloy ASTM B366 C22 Cross |
| Hastelloy DIN 2.4602 Buttweld Reducing Nipple | Hastelloy Alloy B2 Short Radius Elbow |
| ANSI B16.9 Hastelloy UNS N06455 Buttweld Fitting | DIN 2.4617 Hastelloy End Pipe Cap Stockist |
| ASTM B366 Hastelloy UNS N06200 Welded Pipe Fittings | Hastelloy DIN 2.4610 Pipe Fittings |
ASTM B366 Hastelloy Pipe Fittings are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of ASTM B366 Hastelloy Buttweld Pipe Fittings through a worldwide network of stock-keeping branches. These ASTM B366 Buttweld Fittings is use in various industries like :
A Wide Range Of the Best Quality Hastelloy Pipe Fittings, Hastelloy Fittings, Hastelloy pipe fittings price list, C276 Hastelloy Pipe Fittings, b366 hastelloy C22 chemical composition, b366 hastelloy alloy b2 fittings, hastelloy fittings price, alloy C22 pipe fittings manufacturers in india, C2000 alloy elbow dimensions, alloy b2 elbow price, schedule 10 b366 C276 Fittings, hastelloy C276 Schedule 40 pipe fittings, alloy C22 weldable pipe fittings, buy hastelloy c4 pipe fittings, Top Quality Hastelloy C276 Reducer, ASTM B366, Special Hastelloy b2 Pipe Fittings, High quality alloy C22 pipe fittings Manufacturers, ANSI c4 alloy pipe fittings, 6 inch welded alloy C276 pipe fittings, Competitive Price Factory Customized hastelloy C276 Pipe Fittings, Elbow 90 Degree Manufacturer, Supplier in India.
