We have been empowering anyone and everyone associated with us, partnering clients to discover their potential through our products. Fit-Wel Industries LLP. (FWI) is breaking barriers, produce technologically advanced products that are engineered to excel in a range of critical conditions. Made from ‘Super Alloy’ Inconel, we are manufacturers and suppliers of Inconel Forged Fittings limit corroding due to heavy wear besides being exceedingly resistant to high heat environments. Produced to consume in furnaces and boilers, ASTM B564 Inconel 600 Forged Socket Weld Couplings provide maximum productivity even under high-temperature static applications. Operations involving high-pressure and high vibration should utilise the stability extended by UNS N06625 Inconel Forged Union designed to give an unsurpassed performance in the flow lines for industrial effluents and gases. They simplify assemblage and are equally convenient and flexible.
We are exporters of ASTM SB564 Inconel 718 Screwed-Threaded Pipe Elbow are conveying expensive and flammable material in the lines where leakages are barred at any costs. Join hands with us, and we will ensure that you receive the best for your business. Also We offer wide range of Inconel ASTM B564 Forged Fittings such as Inconel 600 Forged Elbow, 601 Inconel Equal Tee, Alloy 625 Coupling, Inconel Alloy 718 Pipe Cap, 600 Inconel Alloy Union, 625 Inconel Alloy Bushing, Inconel 601 Plug, Inconel Alloy 718 Pipe Nipple, Inconel 600 Street Elbow.
Specifications : ASTM B564 & ASME SB564
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
Grades : Inconel 600, 601, 625, 718, 783, 690, x750 Forged Fittings

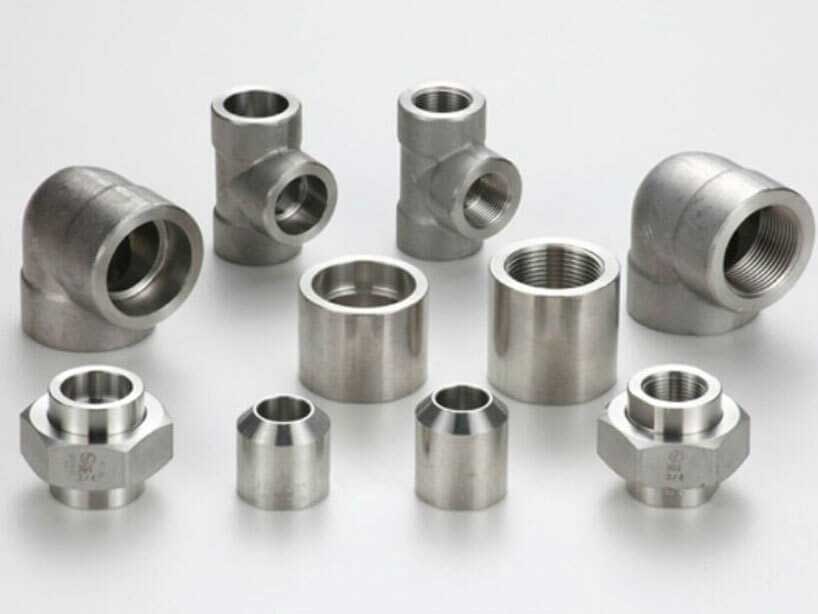

Threaded and Socket Weld Pipe Fittings
| Products | Size | |
| ASTM B564 Inconel 90° Elbows | ASTM B564 Inconel 45° Elbows | Sizes 1/8″– 4″ Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM B564 Inconel Forged Caps | ASTM B564 Inconel Couplings | |
| ASTM B564 Inconel Forged Tees | ASTM B564 Inconel Unions | |
| ASTM B564 Inconel Forged Cross | ASTM B564 Inconel Inserts | |
| ASTM B564 Inconel Forged Plug | ASTM B564 Inconel Street Elbows | |
| ASTM B564 Inconel Bushings | ASTM B564 Inconel Pipe Nipple | |
Inconel Forged Fittings Standards / Types And Pressure Class :
| ASTM B564 - ASME SB564 | Standard Specification for Inconel Piping Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
| Inconel 718 | 2.4668 | N07718 | - | - | - | - | - |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | - | 5.0 max | 58.0 min | 20.0 - 23.0 |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | - | 50.00 - 55.00 | 17.00 - 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
| Inconel 600 Forged Pipe Fittings | Inconel 625 High Pressure Forged Fittings |
| Inconel 601 Socket Weld Fittings | Inconel 718 Threaded Fittings |
| Inconel UNS N06600 Socket Weld 90 Deg Elbow | Alloy 601 Threaded 90 Deg Elbow |
| Inconel 625 Socket Weld 45 Degree Elbow Suppliers | ANSI 718 Inconel Screwed 45 Degree Elbow |
| Inconel UNS N06601 Forged Tee Dealer | Inconel UNS N06625 Threaded Tee Exporter |
| Inconel DIN 2.4816 Socket Weld Cross Stockholder | Inconel 718 Threaded / Screwed Cross Distributors |
| Inconel DIN 2.4851 Socket Weld Half Coupling | 625 Inconel Threaded Half Coupling Manufacturer |
| Inconel DIN 2.4856 Full Coupling | 600 Inconel Alloy Coupling |
| 600 Inconel Socket Weld Cap | Inconel Alloy 625 Screwed Cap |
| ANSI B16.11 Inconel 601 Socket Weld Union | 718 Inconel Threaded / Screwed Union Stockist |
| ASTM B564 Inconel 600 Screwed Hex Plug | ASME SB564 Inconel 625 Square Plug |
| Inconel UNS N07718 Reducing Tee | 600 Inconel Threaded / Screwed Bushing |
| B564 Inconel Alloy 601 Hex Nipples | ASME SB564M Inconel 625 Swage Nipple |
| Alloy 601 Threaded Street Elbow | 718 Inconel Threaded / Screwed Pipe Nipple |
| Inconel DIN 2.4668 Socket weld Unequal Tee | Inconel 600 ASME B16.11 Threaded Unequal Tee |
ASTM B564 Inconel Forged Fittings are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of ASTM B564 Inconel Alloy Forged Pipe Fittings through a worldwide network of stock-keeping branches. These ASTM B564 Inconel Forged Fittings is use in various industries like :
