Fitwel Industries LLP is continuously looking for potential outcomes and constantly improving customer experience-obstruct our products, services, exports, or customer assistance. We have cruised through difficulties and have made items that hold esteem. We are one of the leading Stainless Steel Pipe Fittings Manufacturer in Mumbai, India. The leading suppliers of Stainless Steel Pipe Fittings in Mumbai, that are created in an assortment of designs, styles, specifications, grades, and sizes, with each fitting serving an industry's need.
Fitwel Industries LLP is highly recognized in the market as excellent quality of Stainless Steel Pipe Fittings manufacturers, suppliers, and exporter in Mumbai, India. The products are available in different grades, materials, finishes, sizes, etc. The industry is having a professional team that is looking after the entire production of the pipe fittings that is assuring in supplying the seamless product. The fabrication of stainless steel pipe fittings in Pune is done with the help of the latest technology, modern tools, raw material quality standards, and industrial norms.
There are many appreciating qualities that the product is having in it. Those are high tensile strength, rugged construction, anti-corrosive, high durability, flexibility, sturdiness, longevity. The corrosion resistance, stress corrosion cracking, crevice corrosion, oxidation, pitting resistance ability is making it a good choice for many purposes.
There are many tests the industry is conducting for the assurance of the quality of pipe fittings fabrication. The test done is PMI test, hardness test, pitting resistance test, IGC test. The other tests like a mechanical test, chemical test, flattening test, flaring test, micro test, macro test etc are performed.
Various essential documents to the clients are provided that as a commercial invoice, fumigation certification, heat treatment chart, quality assurance plan, certificate of origin, etc. The other documents like raw material test report, material traceability report, lab test report, third-party test report, buyers test report, etc are provided to the patrons. The delivery is done on time without causing any reason for unnecessarily delay. The product to the far distance is shipped using fastest means of transportation and logistics partners that are promising in delivering that in good condition and on time.
We follow a strict quality control system for stainless steel pipe fittings and supply all our products with test certificates, as per EN 10204 3.1. Strict quality control system and perfect after-sales service system are always our top concern which can guarantee and track the quality of our products from raw materials procurement, production processes, finished products as well as after-sales service. We mainly sell stainless steel elbows, stainless steel reducer, stainless steel stub end, stainless steel Tee, stainless steel end caps, stainless steel long radius bend and so on which are applied in pharma, medical industry, food industry, construction industry, etc and have gained gain good feedback and establish mutual trust with our clients.
It is important to note that the Wall thicknesses and weights for Sch 10 Stainless Steel Pipe Fittings in Mumbai are different as compared to a Class or Schedule 80 fitting.
A schedule number on pipe products like fittings is related to the thickness of the wall on the pipe. As the number on the pipe increases, the thickness of the wall will increase in proportion. Check the Stainless Steel Weld Fittings Prices for different schedules or classes.
Schedule 80 Stainless Steel Seamless Fittings for instance the, Pipe Nipples Are produced to be used in High-Pressure Industrial Applications. These high-pressure applications include Chemical Plants, Food Processing Facilities, And More.
Pipe Fittings are made in different SS grades that superior in quality, these pipe fittings ensure a safe and secure material supply. Available as buttweld, threaded, and socket weld fitting, these are offered to clients in a wide variety of sizes and wall thicknesses.
Stainless Steel Pipe Fittings in Gujarat are manufactured in consideration of national and international product standards, while we can also manufacture fittings as per special specifications of our customers. In the case of custom size fabricated buttweld pipe fittings, the welding is done is carried out by qualified personnel.
Stainless Steel Pipe Fittings are used in a wide variety of different oil and gas applications, but they are also used in mechanical and engineering industries too. This makes seamless & welded pipe fittings rather versatile and they are always inspected with high levels of precision to ensure the quality of the material.
Specifications : ASTM A403 / ASME SA403
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

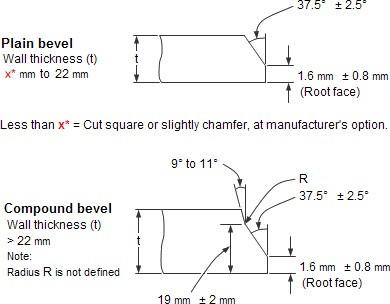

All welded pipe fittings have bevelled ends to allow for ease of welding. This bevel allows for full penetration weld in most cases.
There are two types of bevels;-
|
Stainless Steel Pipe Fittings Manufacturers in India
|
||||
|---|---|---|---|---|
|
A403 Stainless Steel Buttweld (B/W) Fittings Material
|
Size
(in mm) |
Sch. & Swg.
|
SS Fittings Specification
|
SS Pipe Fittings Items
|
|
A403 Stainless Steel Seamless Fittings
|
15 NB
to 300 NB |
Sch. 5
to Sch. XXs |
A-403 B/W
ANSI B16.9 |
A403 WP304/316 Bend (Long & Short)
A403 WP304/316 Stubend (Long & Short) A403 WP304/316 Elbow ( 180o, 90o & 45o) A403 WP304/316 Tee (Equal & Unequal) R=2D,3D,5D,10D Etc A403 WP304/316 Reducer (Con & Ecc) CAP A403 WP304/316 Nipple (Barrel) |
|
A403 Stainless Steel Welded [ERW] Fittings
|
15 NB
to 600 NB |
Sch. 5
to Sch. 80s |
A-403 B/W
ANSI B16.9 |
|
| Note:- | |||||
|---|---|---|---|---|---|
| ASTM A403 Stainless Steel Pipe Fittings Grade |
|
||||
| Stainless Steel Buttweld Pipe Fittings Material | AISI 304, AISI 304L, AISI 304H, AISI 316, AISI 316L, AISI 316LN, AISI 316Ti, AISI 309, AISI 317, AISI 317L, ASTM A403 310S, AISI 321, AISI 321H, AISI 347, AISI 347H, AISI 410, AISI 420, AISI 446, AISI 202 DIN 1.4301/7, DIN 1.4401/4, DIN 1.4541, DIN 1.4571 |
||||
| ASME B16 9 Stainless Steel Fittings Type | Straight, Seamless / Welded / Fabricated Stainless Fittings | ||||
| Mss Sp-43 Stainless Steel Fitting Designation | A 403 Pipe Fittings, SA 403 Fittings | ||||
| Stainless Steel Welded Fittings Dimension Standard | Manufacturing as per ASME/ANSI B16.9, ASME B16.25, ASME B16.28, ASME B16.49, MSS-SP-43 Fittings | ||||
| Stainless Steel Seamless Fittings Value Added Service | Polish (Electro & Commercial) Heat Treatment Annealed & Pickled, Sand Blasting Machining Etc. |
||||
| Stainless Steel Seamless Pipe Fittings Standard | ASTM, ASME | ||||
| Fabricated Stainless Steel Fittings Size | 1/2 Inch to 48 Inch | ||||
| Two Joint / Two Halve 304 Butt weld Fittings Size | 6" to 48" | ||||
| End Connection | Butt Weld | ||||
| Stainless Steel Welded Pipe Fittings Thickness | Sch 5s Fittings, Sch 10s Fittings, Sch 40s Fittings, Sch 80s Fittings, Sch 160s Fittings, Sch XXS |
||||
| Producing A403 Stainless Steel Pipe Fittings in form of : |
|
||||
| SS Pipe Fittings Other Form | A403 Stainless Steel Dairy Fitting | ||||
| Sch 80 Stainless Steel Pipe Fittings Test Certificate |
With Manufacturer Test Certificate Under Third Party Inspection |
||||
| SS Pipe Fittings Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Bend | ||||
| Stainless Steel Pipe Fittings Manufacturers in India Specification: | ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2 | ||||
| SS Fittings Procure Raw Materials from | Japanese Mills, European Mills, US Mills, Korean Mills | ||||
| Stainless Steel Weld Fittings Prices Specialize |
Long Bend with Radius – R = 3D, 5D & 10D |
||||
|
Seamless/ Welded Pipe Fittings 100% Radiography Tested
Stainless Steel Forged Fittings Manufacturer in India, ANSI B16.11 Socket Weld and Threaded Fittings Suppliers |
|||||
|
Stainless steel elbow manufacturers Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report as per client specification.
|
|||||
| ASTM A 403 Stainless Steel Fittings Grade | SS Pipe Fittings Specification |
|---|---|
| Stainless 304/304L, 304/304H | A/SA403, A/SA182 |
| Stainless 316/316L, 316/316H | A/SA403, A/SA182 |
| Stainless 317/317L | A/SA403, A/SA182 |
| Stainless 321/321H | A/SA403, A/SA182 |
| Stainless 347/347H | A/SA403, A/SA182 |
| Stainless Steel Buttweld Pipe Fittings Standard | Stainless Steel Seamless Fittings Description |
|---|---|
| ASTM A182/A182M | Forged or rolled alloy steel pipe flanges, forged fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASTM A403/A403M | Wrought austenitic stainless steel piping fittings. |
| ASTM A815/A815M | Wrought ferritic, ferritic/austenitic and martensitic stainless steel piping fittings. |
| AS 2129 | Flanges for pipes, valves and fittings |
| MSS Sp-43 Stainless Steel Fitting | Wrought stainless steel butt-welding fittings. Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ASME B16 9 Stainless Steel Fittings | Factory-made wrought steel butt-welding fittings. |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ANSI B16.5 | Steel pipe flanges and flanged fittings. |
| ANSI B16.25 | Butt-welding ends. |
| ANSI – B 16.9 ASTM A403 – ASME SA403 |
‘Standard Specification for Wrought Austenitic Stainless Steel Pipe Fittings Manufacturers in India |
| API 590-605 ASME B16.9 |
‘Factory-Made Wrought Buttwelding Fittings’ |
| ISO 4144 | Stainless steel fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| ASME B16.25 | ‘Buttwelding Ends’ |
| ASME B16.28 | ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’ |
Seamless/ Welded 100% Radiography Tested
| Products | Size | |
| ASTM Stainless Steel Elbow – Long Radius | ASTM Stainless Steel Stub Ends | Sizes 1/2″ – 48″ |
| ASTM Stainless Steel Elbow – Short Radius | ASTM Stainless Steel Cross | |
| ASTM Stainless Steel Reducing Elbow | ASTM Stainless Steel Reducing Cross | |
| ASTM Stainless Steel 45° Elbow | ASTM Stainless Steel Tees | |
| ASTM Stainless Steel Fabricated Tee | ASTM Stainless Steel End Cap | |
| ASTM Stainless Steel Reducer | ASTM Stainless Steel Coupling | |
| ASTM Stainless Steel Concentric Reducer | ASTM Stainless Steel Pipe Nipple | |
| ASTM Stainless Steel Eccentric Reducer | ASTM Stainless Steel 5D Elbow | |
| ASTM Stainless Steel 3D Elbow | ASTM Stainless Steel Welded Pipe Fittings | |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| Stainless Steel | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | - | 8 – 11 | - |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
ASTM A403 WP304 Stainless Steel Pipe Fittings are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of ASTM A403 WP304 Stainless Steel Pipe Fittings through a worldwide network of stock-keeping branches. These ASTM A403 WP304 Buttweld Fittings is use in various industries like :
