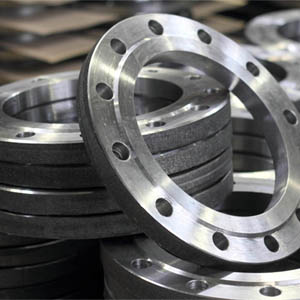

Alloy Steel Plate Flange Manufacturer in India

PED Approved Plate Flanges Manufacturer & Suppliers

PED Certified Plate Flanges Manufacturer & Suppliers

ASME B16.9 Buttweld Equal Tee

We are driving Alloy Steel Plate Flange Manufacturers and suppliers in India, at the leading cost as we are one of the biggest suppliers & dealers of the Alloy Steel Plate Flange in India. Check once our AWWA Class D Plate Flanges cost before buying Alloy Plate Flange from India. moreover, mail for our livestock of SA Plate Flanges to check types & sizes with our prepared stock we will deliver you the best cost of JIS Plate Flange. The Plate Flange JIS 10k slips over the pipe. The inner hole of Plate Flange Awwa C207 Class D is a little bigger than the outer diameter of the pipe. Plate Flange Class 600 are usually secured to the pipe with a fillet weld at the bottom. And the top of Api 6A Plate Flange, they are supported with the help of the pipes. The welding method used on the Plate Flange Asme B16.5 is fillet weld. Hence, the Plate Flange A105 is not suitable for applications that involve the use of high pressure.

Alloy Steel Plate flange can moreover be a plate or ring to make an edge at the end of a pipe when secured to the pipe. A Flange Plate maybe a plate for covering or closing the end of a pipe. A flange joint could be an association of pipes, where the interfacing pieces have flanges by which the parts are shot together.

ASME B16.5 Orifice Flanges Specification :

Standard : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Size : 1/2" (15 NB) to 48" (1200NB)

Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

BS : BS4504 , BS4504, BS1560, BS10

DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673


ANSI B16.47 Orifice Flanges Material & Grades:

Stainless Steel Orifice Flanges : ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L

Duplex & Super Duplex Steel Orifice Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61, 2205 (UNS No. S31803), 2507 (UNS No. S32750)

Carbon Steel Orifice Flanges : ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F70, ASTM A350, LF2, LF3

Alloy Steel Orifice Flanges : ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

Nickel Alloy Orifice Flanges :ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020).

Copper Alloy Steel Orifice Flanges : UNS No. C 10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500, UNS No. C 70600 (Cu -Ni- 90/10), C 71500 (Cu -Ni- 70/30)


All Classes Dimensions of Plate Flanges

Slip On Flanges

NPS DIA
D3
L N P T
1/2 13 0.24 1.5 30 1.5
3/4 19 0.34 1.5 30 1.5
1 25 0.42 2 30 2
40 0.64 3 30 3
2 51 1 6 30 3
3 76 1.5 8 40 3
4 102 1.5 10 40 5
6 152 1.5 15 40 5
8 202 3.5 15 40 7
10 253 3.5 19 45 7
12 302 3.5 20 45 10
14 341 6 20 45 10
16 392 6 21 50 11
18 443 8 23 50 13
20 494 8 25 50 16
24 595 10 29 60 18
NPS ASME B16.5 Flange Class
150 300 600 900 1500 2500
S
1/2 110 110 110 115 115 120
3/4 110 110 110 115 115 120
1 110 115 115 120 120 125
110 120 120 125 125 130
2 110 115 115 125 125 130
3 115 120 120 125 135 140
4 115 125 125 130 140 150
6 115 120 130 135 145 170
8 120 125 135 145 155 170
10 120 130 145 145 165 190
12 125 135 140 145 165 195
14 130 140 145 150 175
16 130 145 150 155 180
18 130 145 155 160 195
20 135 150 155 165 205
24 135 160 165 190 2205
NPS ASME B16.5 Flange Class
150 300 600 900 1500 2500
DIA
D4
1/2 48 54 54 64 64 70
3/4 57 67 67 70 70 77
1 67 73 73 80 80 86
86 96 96 99 99 118
2 105 111 111 143 143 146
3 137 149 149 168 175 197
4 175 181 194 206 209 235
6 222 250 266 289 282 317
8 279 307 320 358 352 387
10 339 361 399 434 434 475
12 409 422 456 497 520 549
14 450 485 491 519 577
16 513 539 564 573 640
18 548 596 611 637 703
20 605 653 681 697 754
24 716 773 789 836 899

Tolerances

D1 & D2 = ± 1%
D3 = ± 1 mm
D4 = 0/-0.4 mm
L = ± 0.1 mm
N = see note 6
P = ± 0.1 mm
S = ± 0.1 mm
T = see note 2
Notes:
  1. Marking
    The Upstream side of the orifice tab shall be stamped at the indicated locations with:
    - the word UPSTREAM
    - the Tag Number
    - the ASME flange class, followed by RF
    - the nominal pipe size (NPS)
    - the measured orifice D1 (in mm)
    - the material of the Plate
    - the type of Plate (Square, Restriction etc.)
    Letter height approx. 4 mm
  2. Welding of tab
    Tab may be integral with Plate up to and including 7 mm plate thickness.
    In other cases full penetration joint to be applied.
  3. Finish of plate
    The upstream and downstream faces of the Plate to a diameter equal to D3 shall have a surface roughness Ra ≤ 0.8 µm ASME B46.1.
    The remaining annular part (between D4 & D3) of upstream and downstream faces shall have a surface roughness Ra between 3.2 and 3.6 µm ASME B46.1. This finish shall be obtained by machining with a round nosed cutting tool having a 0.8 mm radius at a feed rate between 0.35 and 0.45 mm per revolution.
  4. Concentricity
    The centre of the orifice shall not differ from the centre of the plate by more than 0.1 mm for ≤ NPS 8 and 0.2 mm for > NPS 8.
  5. Finish of throat
    The throat and outlet cone shall have a surface roughness Ra ≤ 0.4 µm ASME B46.1.
    All edges shall be sharp and free from burrs, so that when viewed with the naked eye no light is reflected by the corners.
  6. Plate thickness
    The difference between any two measurements of plate thickness, for annular part D1-D3, shall not differ by more than 0.001 DN in mm.
    The plate shall not depart from flatness along any diameter by more than 0.01 D3.
    Tolerance for N shall be:
    N ≤ 6 mm +0.1/-0.25 mm
    N > 6 mm +0/-1.5 mm
    Thickness for annular part D3-D4, may be slightly less, max 0.05 mm, due to surface finishing difference between D1-D3 & D3-D4. (see note 3)
General notes:

  • Dimensions are in millimeters unless otherwise indicated.
  • Allowable pressure difference 20 bar for temperatures up to 400 °C and D1/D3 ≥ 0.1. The thickness of the plate needs to be verified for strength in case the pressure difference is higher than 20 bar and/or the temperature is beyond 400 °C. Based on the outcome of the calculation the thickness of the plate needs to be adjusted.
  • DIA D1 & DIA D2 - to be specified by purchaser.
  • Material to be specified by purchaser.


  • Call@ 9987994248. India's leading Exporter, Manufacturer, and Supplier of Premium Quality AISI/ ANSI/ASME B16.5 Plate Flanges. EN 1092-2 PN16 Plate Flanges in India, Mumbai, Ahmedabad, Chennai, Pune & so on. MSS SP-44 Bsp Plate Flanges dimensions and price in Mumbai.

    Other Names: ANSI B16.5 Plate Flanges, Plate Flanges Class 150, Plate Flanges Class 300

    Material: Stainless Steel, Carbon Steel, Duplex & Super Duplex Steel, High Nickel Alloy, Hastelloy & Titanium

    Brand: Fitwel Industries LLP

    Manufacturer: Fitwel Industries LLP

    Suppliers & Exporter: Fitwel Industries LLP

    Rating: 4.2/5 based on 611 customer reviews

    ASME B16.9 Stainless Steel Plate Available Types

    Plate Flanges Manufacturer in India Plate Flanges Manufacturer
    ASME B16.9 Plate Flanges Stainless Steel Plate Plate Flanges
    Forged Plate Flanges Suppliers Stainless Steel Plate Plate Flanges
    ANSI B16.9 Plate Flanges Dealer ASME B16.28 Plate Flanges Exporter
    Carbon Steel Plate Flanges High Quality Plate Flanges Manufacturer
    ASTM A403 Alloy Steel Plate Flanges Duplex Steel Plate Flanges
    Super Duplex Steel Plate Flanges Copper Nickel Plate Flanges
    High Nickel Alloy Plate Flanges Hastelloy Plate Flanges
    Titanium Plate Flanges Inconel Plate Flanges

    Plate Flanges Application

    ASME B16.9 Plate Flanges are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Plate Flanges through a worldwide network of stock-keeping branches. These Plate & Forged Flanges is used in various industries like:

  • Plate Flanges For Oil & Gas Industries
  • Plate Flanges For Petrochemical Industries
  • Plate Flanges For Engineering Industries
  • Plate Flanges For Chemical Industries
  • Plate Flanges For Sugar Industries
  • Plate Flanges For Power Generation Industries
  • Plate Flanges For Fertilizers Industries
  • Plate Flanges For Food Processing Industries
  • Plate Flanges For Polymer Industries
  • Plate Flanges For Dairy Industries
  • Plate Flanges For Bio-Pharma Industries


  • Coutries & Cities We Serve


    We are renowned & most acclaimed Manufacturers, Suppliers & Exporter And Stockist of Plate Flanges in Stainless Steel & Carbon Steel And Alloy Steel & High nickle Alloy.

    For More Information About, Plate Please Call 91-22-2382 9256 or Send an Email to sales@fitwelindia.com
