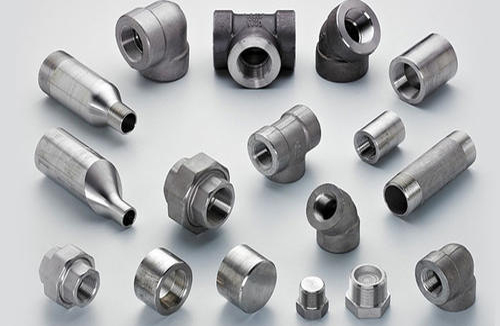

Fitwel Industries LLP is the one-stop solution to all your needs for Stainless Steel 309 for Forged Fittings, Stainless Steel 309 for Threaded Fittings, Stainless Steel 309 for Socket Weld Fittings. These SS 309 Forged Fittings are available in a variety of shapes, sizes, grades, and standards which can be customized and manufactured according to the requirement of the customer. They have high-pressure resistance, heat transfer capacity, high ductility, and longer life than any other locally available stainless steel fitting.
Fitwel Industries LLP has inculcated the usage of advanced technology and high-end sophisticated machinery for the creation of Stainless Steel UNS S31000 Socketweld Unions. This particular fitting is designed to allow easy and swift disconnection of pipes for the purpose of maintenance or fixture replacement. Stainless Steel 309 Socket Weld Fittings are those in which the pipes to be connected are fitted into a particular recessed area present in a valve, fitting, or pipe. They are more effective to fit in pipes that have smaller diameters. In this, the pipe and the fitting both are cut in a square. Stainless Steel 309 Threaded Fittings are available in different threading sizes and are used for connections that need to be air or watertight.
Specifications : ASTM A182 & ASME SA182
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
Threaded and Socket Weld Pipe Fittings
Products | Size | |
ASTM A182 SS 309 90° Elbows | ASTM A182 SS 309 45° Elbows | Sizes 1/8″– 4″ Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
ASTM A182 SS 309 Forged Caps | ASTM A182 SS 309 Couplings | |
ASTM A182 SS 309 Forged Tees | ASTM A182 SS 309 Unions | |
ASTM A182 SS 309 Forged Cross | ASTM A182 SS 309 Inserts | |
ASTM A182 SS 309 Forged Plug | ASTM A182 SS 309 Street Elbows | |
ASTM A182 SS 309 Bushings | ASTM A182 SS 309 Pipe Nipple |
SS 309 Forged Fittings Manufacturing Standards :
ASTM A182 - ASME SA182 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
ASME B16.11 | Socket Welding and Threaded Forged Fittings |
MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
MSS SP-95 | Swage(d) Nipples and Bull Plugs |
BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
SS 309 | 1.4841 | S30900 | SUS 309 | 30924 | 20Ch25N20S2 | - | X15CrNi25-20 |
SS 309 | 1.4845 | S30908 | SUS 309 | 30916 | 20Ch23N18 | - | X8CrNi25-21 |
SS 309 | - | S30909 | - | - | - | - | - |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
SS 309 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 - 26.00 | 0.10 max | 19.00 - 21.00 | 54.7 min |
SS 309 | 0.08 max | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24.00 - 26.00 | 0.75 max | 19.00 - 21.00 | 53.095 min |
SS 309 | 0.04 – 0.10 | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24.00 - 26.00 | - | 19.00 - 21.00 | 53.885 min |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Stainless Steel 309 Forged Pipe Fittings | Stainless Steel 309 High Pressure Forged Fittings |
Stainless Steel 309 Socket Weld Fittings | Stainless Steel 309 Threaded Fittings |
Stainless Steel UNS S30900 Socket Weld 90 Deg Elbow | Stainless Steel 309 Threaded 90 Deg Elbow |
SS 309 Socket Weld 45 Degree Elbow Suppliers | ANSI 309 Stainless Steel Screwed 45 Degree Elbow |
SS 309 Forged Tee Dealer | SS 309 Threaded Tee Exporter |
SS 309 Socket Weld Cross Stockholder | Steel 309 Threaded / Screwed Cross Distributors |
Stainless Steel SUS 309 Socket Weld Half Coupling | SS 309 Threaded Half Coupling Manufacturer |
Stainless Steel DIN 1.4841 Full Coupling | Stainless Steel A182 309 Coupling |
Stainless Steel 309 Socket Weld Cap | Stainless 309 Screwed Cap |
ANSI B16.11 SS 309 Socket Weld Union | SS 309 Threaded / Screwed Union Stockist |
ASTM A182 SS 309 Screwed Hex Plug | ASME SA182 SS 309 Square Plug |
Stainless Steel DIN 1.4845 Reducing Tee | 309 SS Threaded / Screwed Bushing |
A182 SS 309 Hex Nipples | ASME SA182M SS 309 Swage Nipple |
Steel UNS S30908 Threaded Street Elbow | SS 309 Threaded / Screwed Pipe Nipple |
Stainless Steel UNS S30909 Socket weld Unequal Tee | SS 309 ASME B16.11 Threaded Unequal Tee |
ASTM A182 309 Forged Fittings are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of ASTM A182 309 Stainless Steel Forged Pipe Fittings through a worldwide network of stock-keeping branches. These ASTM A182 309 Forged Fittings is use in various industries like :
